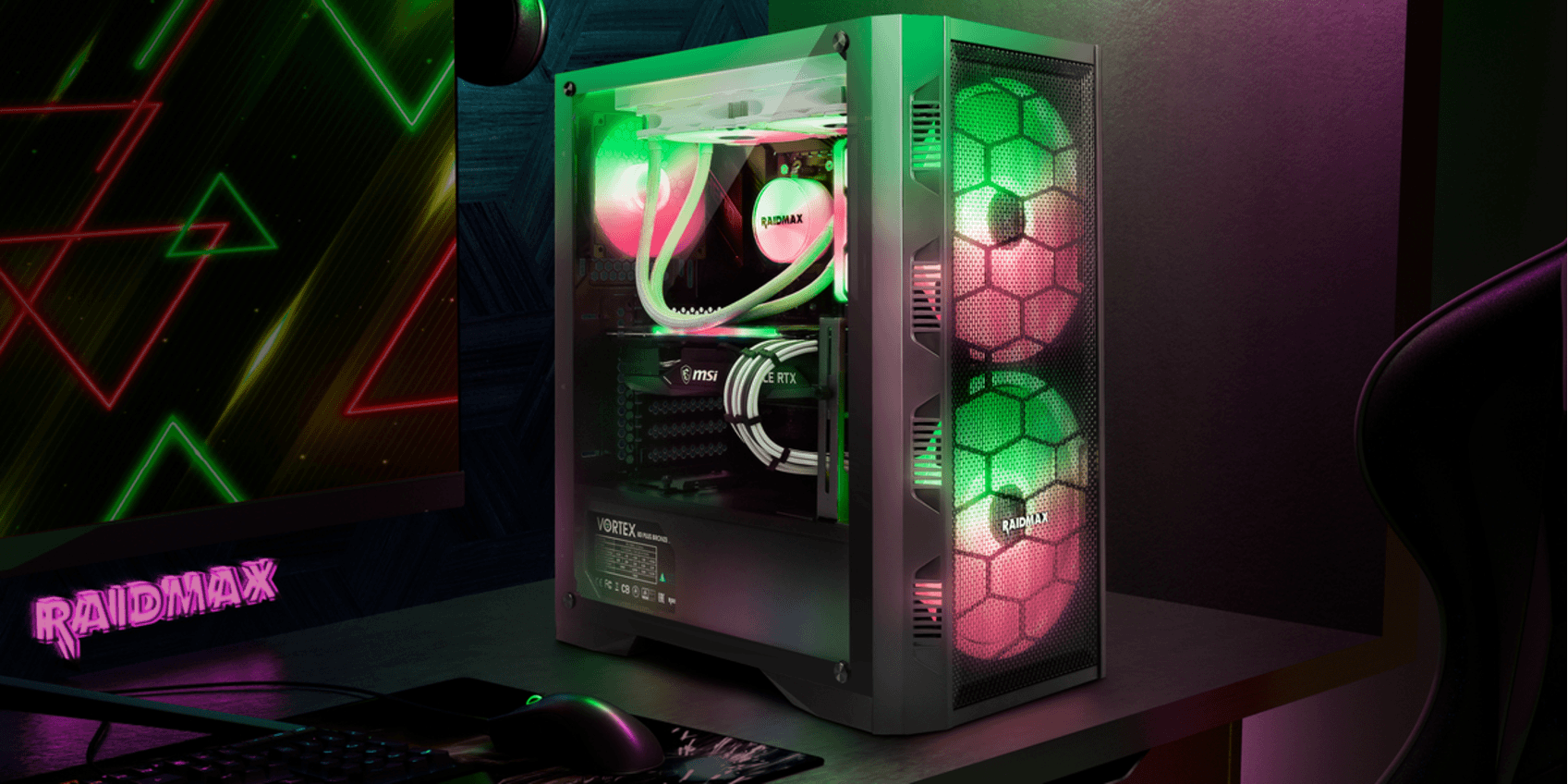

X616
DUAL LARGE 20MM ARGB FANS

錨點 1
  • ​Mid Tower multi-color colorful chassis

  • Convenient top-mounted I/O, can support USB 3.0 X 1

  • Plentiful storage space, full support for SSD/HDD hard drives

  • Sufficient cable management space, 14mm at the flat plate and 32mm at the bend, convenient for users to have a good installation experience

  • Two 200mm, adjustable dazzling light effect fans in the front panel

  • The water-cooled front can support up to 360mm

  • Detachable filters are attached to the top and bottom for easy cleaning

  • Tempered glass transparent side panels

  • Shark gill-shaped air intake holes are designed on the side of the front panel to facilitate heat dissipation

  • Detachable hard disk bracket for easy installation for extended power supplies

CREATION OF

VALUE&FUNCTION


UNIQUE
HEXAGONAL
DESIGN

DIAMOND
MESH DESIGN


ADJUSTABLE
DAZZLING LIGHT

FEATURE


I/O PORT

01

02

03

04

05

06

01

USB2.0 X 2

02

HD-AUDIO

03

Power

04

Reset

05

Fan Control

Button

06

USB3.0 X 1


COOLING SYSTEM

Front Fan : 120mm x 3 / 140mm x 2 / 200mm x 2 (Up to 360mm Radiator )

Top Fan : 120mm x 2 / 140mm x 2 (Up to 240mm Radiator)

Rear Fan : 120mm x 1 / 140mm x 1 (Up to 120mm Radiator)

Included Fans : ARGB Fan (200mm x 2 in front)

                             Regular Fan (120mm x 1 in rear)

COMPATIBILITY
& CLEARANCES

Motherboard Support : ATX / Micro-ATX/ ITX

Max. Video Card (L) : ≦ 355mm

Max. CPU Cooler (H) : ≦ 170mm

PSU Support : Standard PS2 / ATX PSU (Bottom Mounted)

3.5"HDD / 2.5"SSD : 2 / 2


SPECIFICATIONS

Product Name

X616 MESHIAN

Dimensions

420mm (L) x 220mm (W) x 464mm (H)

Motherboard Support

ATX / Micro-ATX / ITX

Expansion Slots

7

Materials

Plastic, Steel, Tempered Glass

3.5"HDD / 2.5"SSD

2 / 2

I/O Ports

USB3.0 x 1, USB2.0 x 2, HD Audio, Power, Reset, Fan LED Button

Front Fan

120mm x 3 / 140mm x 2 / 200mm x 2

Top Fan

120mm x 2 /140mm x 2

Rear Fan

120mm x 1 /140mm x 1

Included Accessory

ARGB Fan (200mm x 2 in front), Regular Fan (120mm x 1 in rear)

Front Radiator

 120mm / 140mm / 240mm / 280mm / 360mm

Top Radiator

120mm / 240mm

Rear Radiator

120mm

Max. Video Card (L)

≦ 355mm

Max. CPU Cooler (H)

≦ 170mm

Side Panel

Tempered Glass

PSU Support

Standard PS2 / ATX PSU (Bottom Mounted)

Dust Filter

Front / Bottom / Top

Net Weight

5.3 kg

Gross Weight

6.3 kg
